Product Description

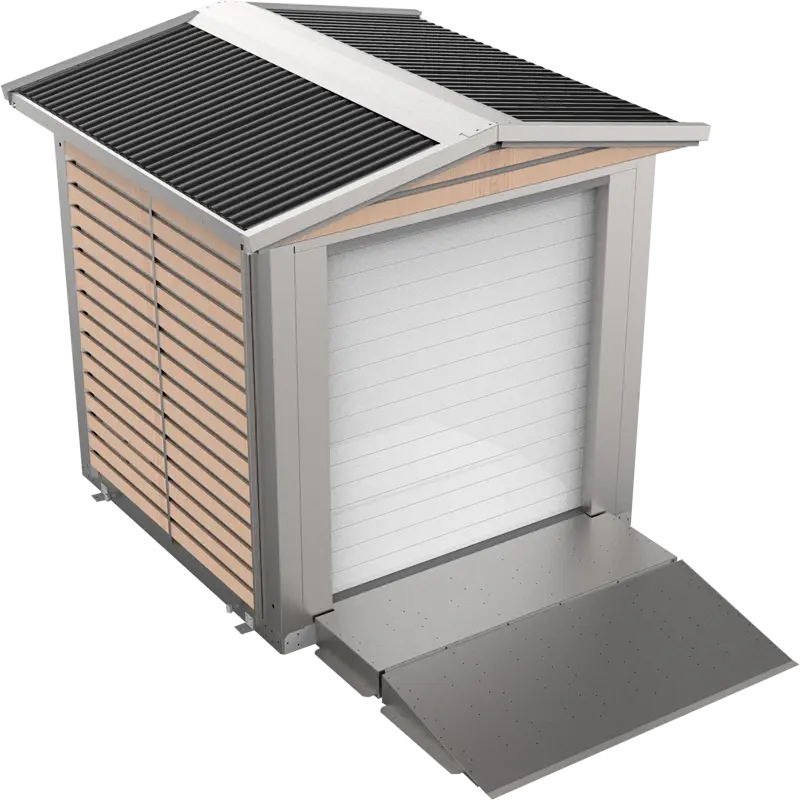

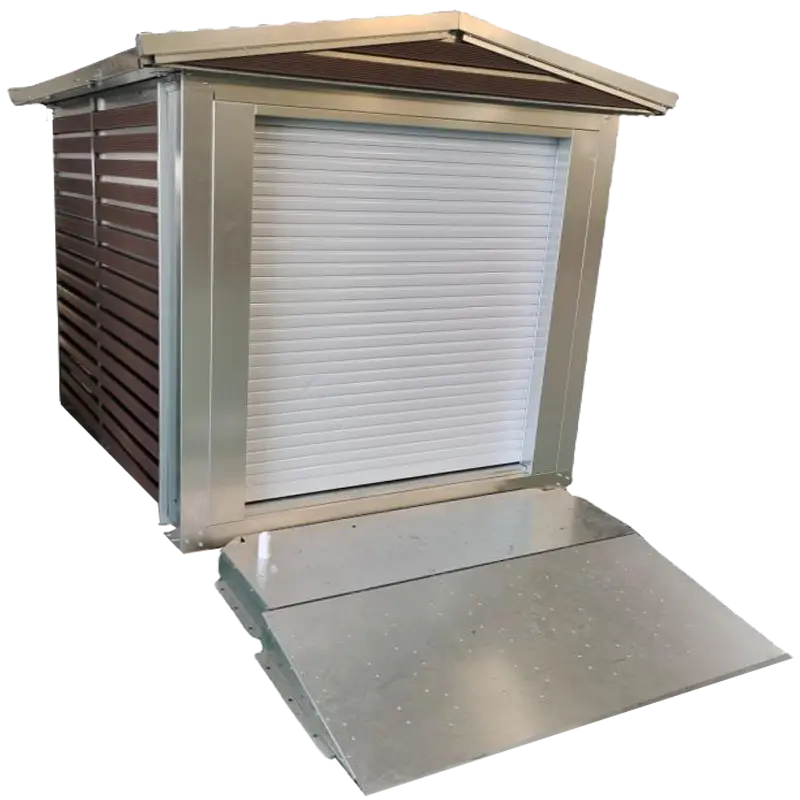

AluGreat All-in-One Outdoor Robot Charging Station & Workstation
Elevate your robotic fleet’s operational efficiency with the AluGreat Integrated Robot Charging Room. Engineered specifically for autonomous inspection robots used in power grids, oil fields, and industrial parks, this station is the ultimate "safe haven" for high-tech assets.
Engineered for the Elements Constructed from heavy-duty 1.5–2mm galvanized steel (or optional stainless steel), our charging room provides superior durability against the elements. It is fire-proof, rust-proof, and designed with a reinforced roof to handle extreme outdoor environments.
Smart Access & Automation Integration is at the heart of AluGreat solutions. The workstation features an automated front roller door that syncs with your robot’s arrival. Inside, you’ll find dedicated cable management slots, high-speed WiFi-to-Serial servers, and a Siemens PLC control system to monitor the docking process in real-time.
The 9-Degree Advantage Most inspection robots struggle with steep inclines. AluGreat solved this with an ultra-low 9-degree ramp, allowing low-chassis robots to enter and exit safely without mechanical stress.
Key Technical Specifications:
Structure: Modular sheet metal assembly for easy deployment.
Dimensions: Standard H2800 * W2200 * D3000 mm (Fully customizable).
Climate Control: Integrated 805 exhaust system; optional Midea industrial HVAC.
Customization: Available in explosion-proof versions for hazardous industrial sites.
3-in-1 Integration: A professional workstation designed for autonomous charging, routine maintenance, and secure robotic storage.
Ultra-Low 9° Entry Ramp: Specifically engineered for low-chassis inspection robots to ensure smooth docking without bottoming out.
Industrial-Grade Weatherproofing: Built with 1.5–2mm galvanized or stainless steel, offering IP-rated protection against rain, UV rays, fire, and rust.
Automated Access Systems: Equipped with an intelligent automated front roller shutter for robot entry and a manual rear door for technician access.
Customizable Modular Build: Fully adjustable dimensions with options for explosion-proof configurations and Siemens PLC integration.
