5050 Aluminum Extrusion
5050 Aluminum Extrusion
Alugreat 5050 aluminum extrusion provides all of the necessary aluminum profile characteristics. Also, Alugreat 5050 aluminum extrusion has the durability, lightness, and flexibility that suits your needs.
- With Add-on Custom Accessories Sure to Fit
- Highly compatible with Major Manufacturers Worldwide
- Access to Software Design Services for Free
- High-Quality Aluminum Raw Materials
Your Reliable 5050 Aluminum Extrusion Supplier and Manufacturer
| Item Type | 5050 Aluminum Extrusion | |
| Material | 6000Series aluminium alloy | |
| Temper | T3-T8 | |
| Shape | T – Profile, or customized | |
| The option of Profile | 15/20/30/40/45/50/60/80/90/100/160 series etc. | |
| Application | Decorations, Robot Frame, workstations, Building, Industrial, Machinery, Automation parts, CNC, etc | |
| Color | Standard: black, silver and grey, or customized | |
| Finish | Anodizing, Mill finish, Electroplating, Polishing, Sand blasted, Powder coating, Silver plating, Brushed, Painted, PVDF etc. | |
| Length | customized length | |
| Delivery time | 15-20 days after sample confirmed & down payment, or negotiated | |
| Deep process | CNC,drilling,milling,cutting,stamping,welding,bending,assembling,Custom Aluminum Fabrication | |
| size | 6mm,8mm,10mm | |
| MOQ | Low MOQ | |
| OEM & ODM | Available. our engineer can check and discuss your design , great help ! | |
| Free Samples | Yes,we can provide free sample | |
| Delivery time | 15-20 days after sample confirmed & down payment, or negotiated | |
| Port | Shanghai Port |
Frequently 5050 Aluminum Extrusion Questions & Answers
Yes, Alugreat is able to provide 5050 aluminum extrusion for you to check the quality, Normally the sample is for free for saving your cost, But it will require tooling cost if custom tube size.
It is only taking 7-10 days to complete your sample if the sample size is in stock. For custom 5050 aluminum extrusion, It takes a little bit long time to make extrusion tooling, commonly it requires 30-35 days finish.
30% TT in advance, the balance payment is paid before shipment.
We have the personal paging service for helping customers’ solve queries Also, We have a free of six months warranty. If our products occur quality problems, we will change the products.
We inspect the product after each manufacturing process and we have the advanced test facilities and instruments.
Paper tube and exporting wooden case, or customized requirement.
Alugreat is a leading 5050 aluminum extrusion manufacturer and supplier in China, delivering high-quality 50 series aluminum profiles with versatile design and excellent compatibility for industrial applications. Our 5050 aluminum extrusion is engineered to provide reliable structural support while offering easy assembly and broad compatibility with other aluminum profiles.
Key Features of Alugreat 5050 Aluminum Extrusion
Easy Connection Design
Alugreat 5050 aluminum extrusion features four attachment slots, each measuring 10.2mm wide, enabling quick and secure connection with various components and accessories. This slot design simplifies the assembly process and enhances the flexibility of your project configurations.
Lightweight & Efficient Structure
Despite its 50mm×50mm dimension, Alugreat 5050 aluminum extrusion is designed to be lightweight, weighing only 2.95kg per meter. This balance of size and weight makes it an ideal choice for applications where both structural stability and weight efficiency are required.
Excellent Compatibility
Our 5050 aluminum extrusion offers proven high compatibility, seamlessly connecting with 20 series, 30 series, 40 series, and 45 series aluminum profiles. Additionally, Alugreat 5050 aluminum extrusion and its accessories are compatible with major global manufacturers, ensuring easy pairing and integration with existing systems.

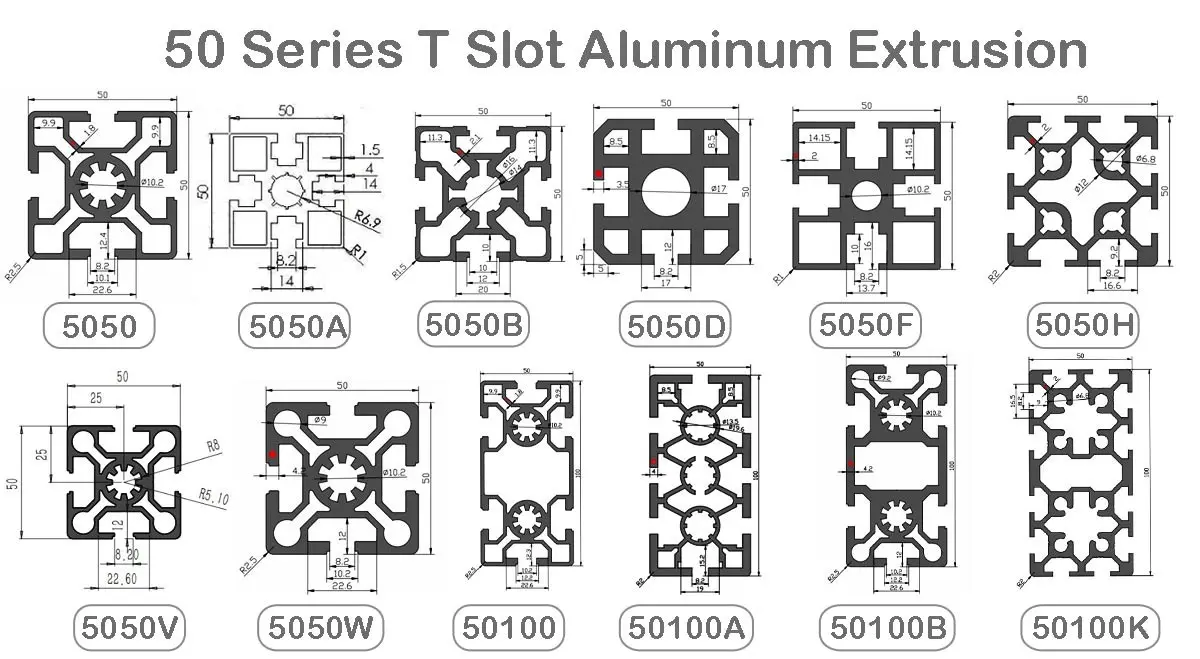

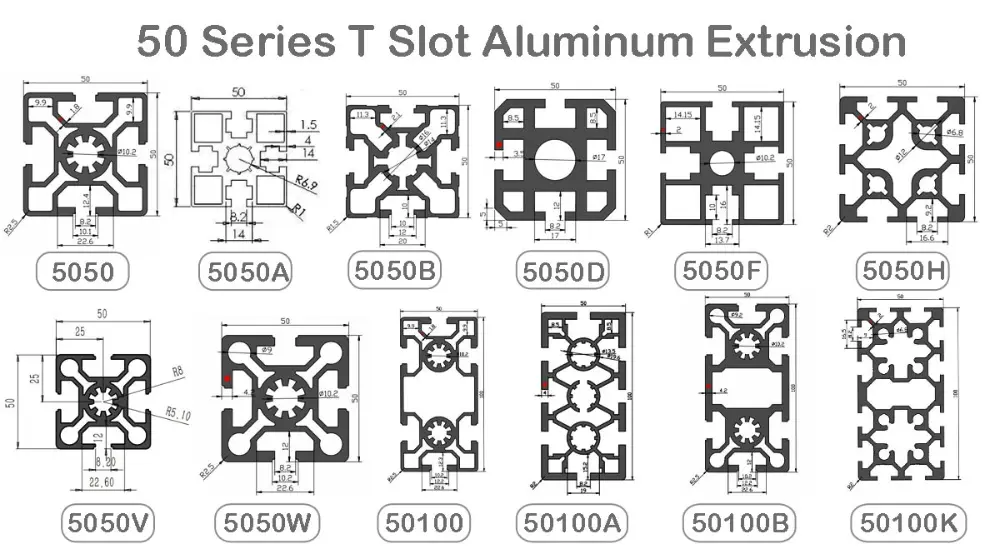

50 Series Aluminum Extrusion Specifications

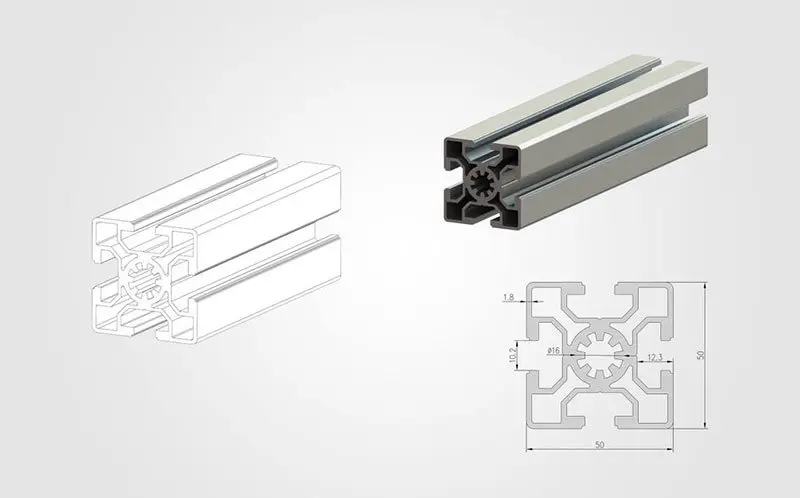

5050 Aluminum Extrusion
Specifications
Product Code: W-10-5050
Slot Width: 10.2mm
Weight: 2.95kg/m
Standard Length: 6.02m (custom cut options available)
Moment of Inertia: Ix: 48.6cm⁴, Iy: 20.2cm⁴
Section Modulus: Zx: 14.6cm³, Zy: 7.3cm³

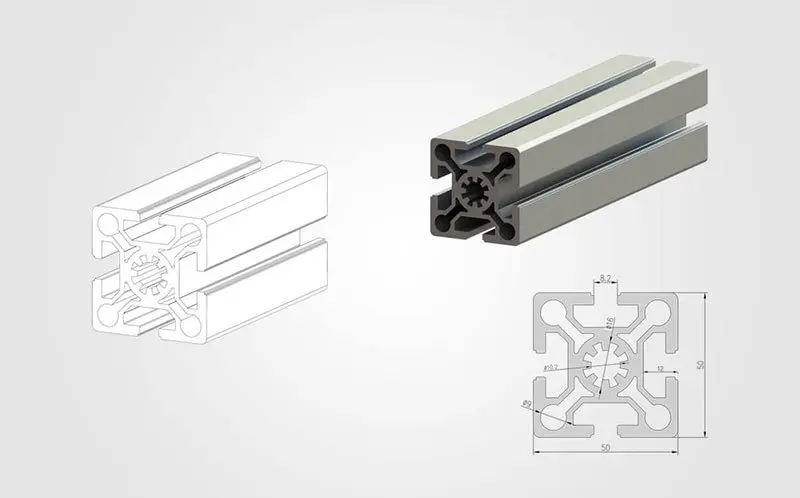

5050W Aluminum Extrusion
Specifications
Product Code: W-8-5050W
Slot Width: 8.2mm
Weight: 3.5kg/m
Standard Length: 6.02m (custom cut options available)
Moment of Inertia: Ix: 112.1cm⁴, Iy: 29.7cm⁴
Section Modulus: Zx: 24.6cm³, Zy: 12.3cm³

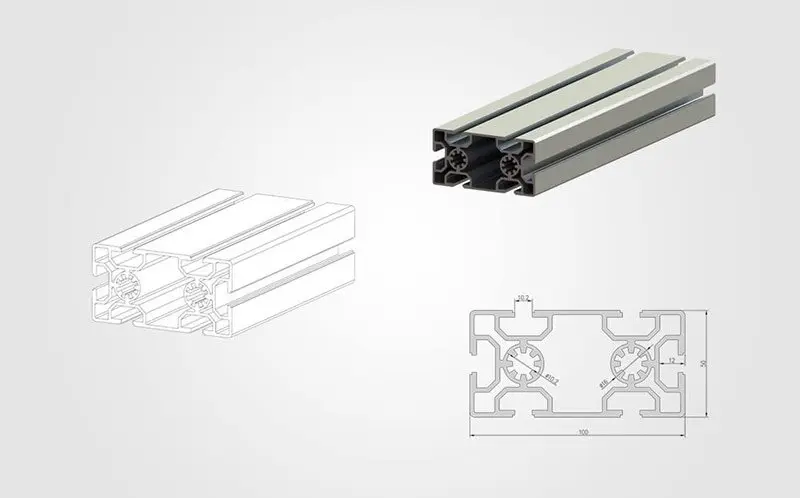

50100 Aluminum Extrusion
Specifications
Product Code: W-10-50100
Slot Width: 10.2mm
Weight: 5.1kg/m
Standard Length: 6.02m (custom cut options available)
Moment of Inertia: Ix: 122.3cm⁴, Iy: 32.6cm⁴
Section Modulus: Zx: 28.6cm³, Zy: 14.3cm³

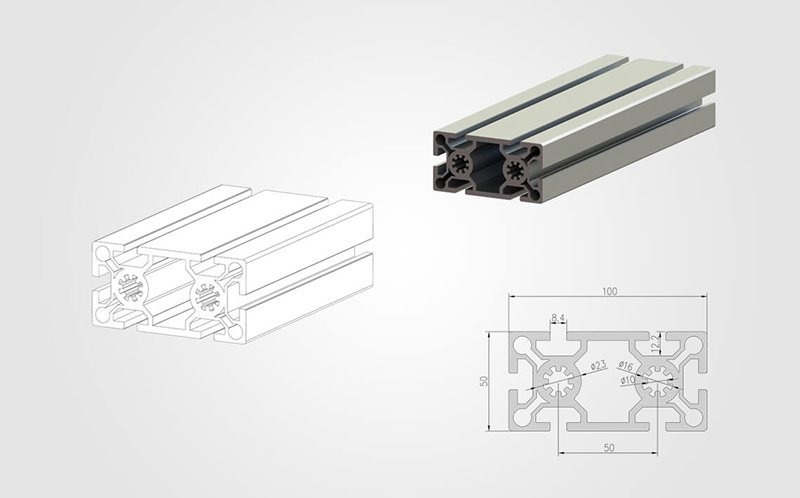

50100W Aluminum Extrusion
Specifications
Product Code: W-8-50100W
Slot Width: 8.2mm
Weight: 6.7kg/m
Standard Length: 6.02m (custom cut options available)
Moment of Inertia: Ix: 150.3cm⁴, Iy: 42.8cm⁴
Section Modulus: Zx: 32.2cm³, Zy: 16.6cm³
Fasteners & Custom Accessories
Recommended Fasteners
M8 bolts and nuts are highly recommended for use with 5050 aluminum extrusion, providing secure and reliable connections for your assemblies.
Custom Accessories
Alugreat offers a range of custom accessories for 5050 aluminum extrusion, including brackets, bolts and nuts, joints, and casters with wheels. These accessories enable quick and easy assembly without the need for welding, streamlining your project installation process.
Application Scenarios
Alugreat 5050 aluminum extrusions are primarily used for machine framing and bases. Their high strength makes them perfect for creating reliable and heavy-duty aluminum structural frameworks, supporting a wide range of industrial machinery and equipment applications.
Custom Design Services
Alugreat is recognized as an expert in aluminum extrusion profile design and manufacturing. We accept various design formats including DWG, DXF, PDF, or IGS, and can even transform rough sketches into high-quality aluminum profiles. Our experienced engineers work closely with you to bring your design ideas to life.
Additionally, Alugreat’s experts provide free software design services, converting your 5050 aluminum extrusion drawings into professional production-ready designs, ensuring your project meets the highest quality standards.
