6060 Aluminum Extrusion Supplier
6060 Aluminum Extrusion
Alugreat 6060 aluminum extrusion is admired for its lightweight feature. Other than that, our 6060 aluminium has clever designs that meet your demands.
- Design Improvement Options For Better Quality
- Clever and Lightweight Design Without Compromising Strength
- Step-by-step Quality Check-Up While Manufacturing
- Versatile with Many Connection Options
Your Premier 6060 Aluminum Extrusion Supplier
| Item Type | 6060 Aluminum Extrusion | |
| Material | 6000Series aluminium alloy | |
| Temper | T3-T8 | |
| Shape | T – Profile, or customized | |
| The option of Profile | 15/20/30/40/45/50/60/80/90/100/160 series etc. | |
| Application | Decorations, Robot Frame, workstations, Building, Industrial, Machinery, Automation parts, CNC, etc | |
| Color | Standard: black, silver and grey, or customized | |
| Finish | Anodizing, Mill finish, Electroplating, Polishing, Sand blasted, Powder coating, Silver plating, Brushed, Painted, PVDF etc. | |
| Length | customized length | |
| Delivery time | 15-20 days after sample confirmed & down payment, or negotiated | |
| Deep process | CNC,drilling,milling,cutting,stamping,welding,bending,assembling,Custom Aluminum Fabrication | |
| size | 6mm,8mm,10mm | |
| MOQ | Low MOQ | |
| OEM & ODM | Available. our engineer can check and discuss your design , great help ! | |
| Free Samples | Yes,we can provide free sample | |
| Delivery time | 15-20 days after sample confirmed & down payment, or negotiated | |
| Port | Shanghai Port |
Yes, Alugreat is able to provide 6060 aluminum extrusion for you to check the quality, Normally the sample is for free for saving your cost, But it will require tooling cost if custom tube size.
It is only taking 7-10 days to complete your sample if the sample size is in stock. For custom 6060 aluminum extrusion, It takes a little bit long time to make extrusion tooling, commonly it requires 30-35 days finish.
30% TT in advance, the balance payment is paid before shipment.
We have the personal paging service for helping customers’ solve queries Also, We have a free of six months warranty. If our products occur quality problems, we will change the products.
We inspect the product after each manufacturing process and we have the advanced test facilities and instruments.
Paper tube and exporting wooden case, or customized requirement.
Frequently 6060 Aluminum Extrusion Questions & Answers
Alugreat is a leading 6060 aluminum extrusion manufacturer and supplier in China, delivering high-quality 60 series aluminum profiles with excellent flexibility, lightweight design, and reliable structural strength for industrial and structural framing applications. Our 6060 aluminum extrusion is engineered to meet diverse project needs, combining practical functionality with efficient performance.
Key Features of Alugreat 6060 Aluminum Extrusion
Flexible & Versatile Design
Alugreat 6060 aluminum extrusion offers high-end flexibility, making it an ideal choice for structural framings and a wide range of industrial applications. Its adaptable design allows for seamless integration into various project configurations.
Lightweight & High-Strength Structure
Despite its 60mm×60mm dimension, Alugreat 6060 aluminum extrusion is designed to be lightweight, weighing only 3.2kg per meter. Our engineers have optimized the design to maximize structural strength while maintaining a lightweight profile, ensuring no compromise on performance or functionality.
Multiple Attachment Options
The 6060 aluminum extrusion features four slots with 8.2mm-wide openings, providing diverse attachment options for components and accessories, simplifying the assembly and customization process for your projects.

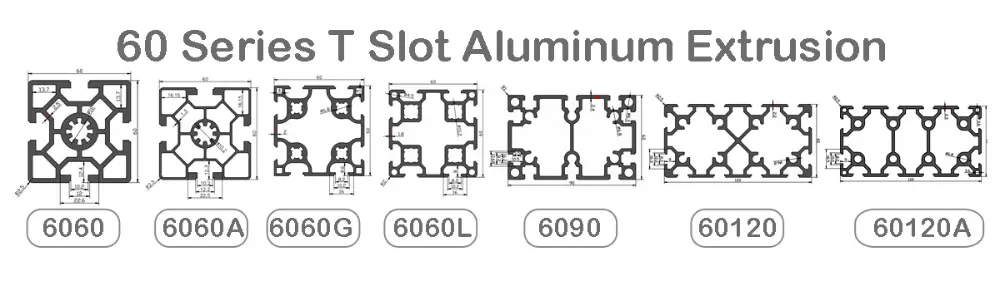

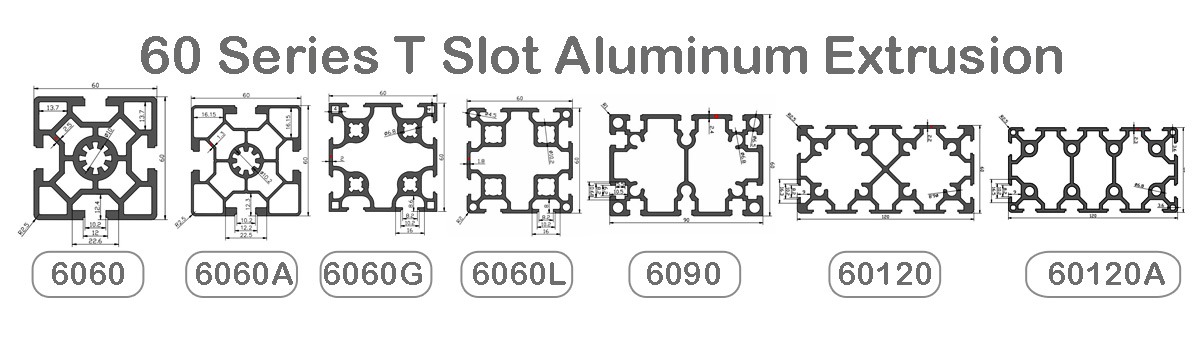

60 Series Aluminum Extrusion Specifications

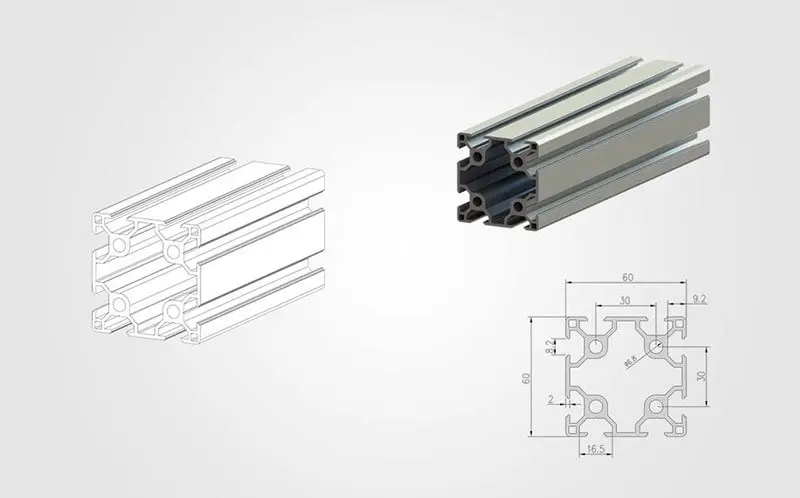

6060 Aluminum Extrusion
Specifications
Product Code: W-8-6060
Slot Width: 8.2mm
Weight: 3.2kg/m
Standard Length: 6.01m (custom cut options available)
Moment of Inertia: Ix: 103.15cm⁴, Iy: 26.6cm⁴
Section Modulus: Zx: 22.4cm³, Zy: 11.2cm³

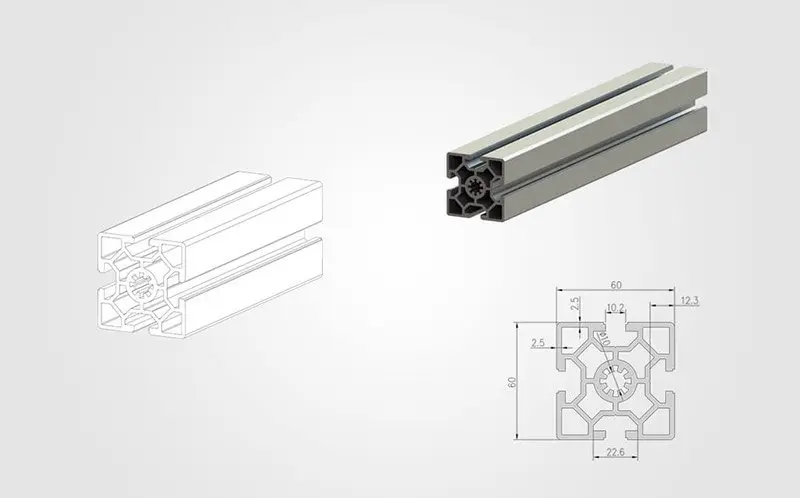

6060W Aluminum Extrusion
Specifications
Product Code: W-10-6060W
Slot Width: 10.2mm
Weight: 4.5kg/m
Standard Length: 6.01m (custom cut options available)
Moment of Inertia: Ix: 48.85cm⁴, Iy: 48.85cm⁴
Section Modulus: Zx: 16.27cm³, Zy: 16.27cm³

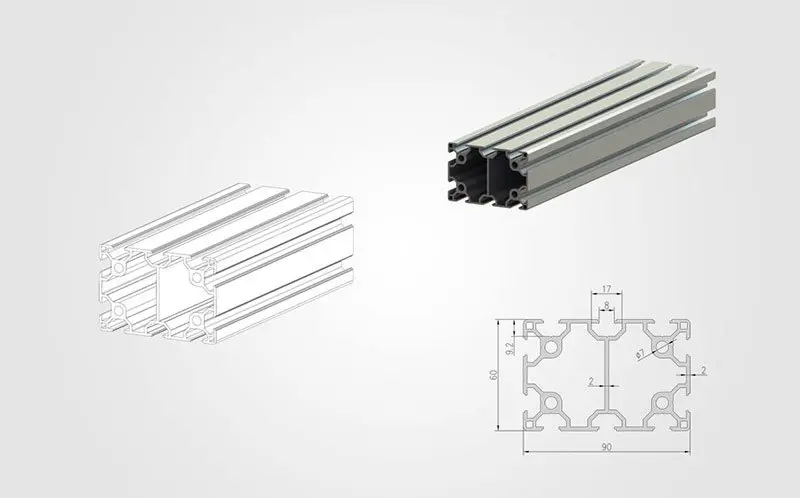

6090 Aluminum Extrusion
Specifications
Product Code: W-8-6090
Slot Width: 8.2mm
Weight: 3.6kg/m
Standard Length: 6.01m (custom cut options available)
Moment of Inertia: Ix: 112.1cm⁴, Iy: 29.7cm⁴
Section Modulus: Zx: 24.6cm³, Zy: 12.3cm³

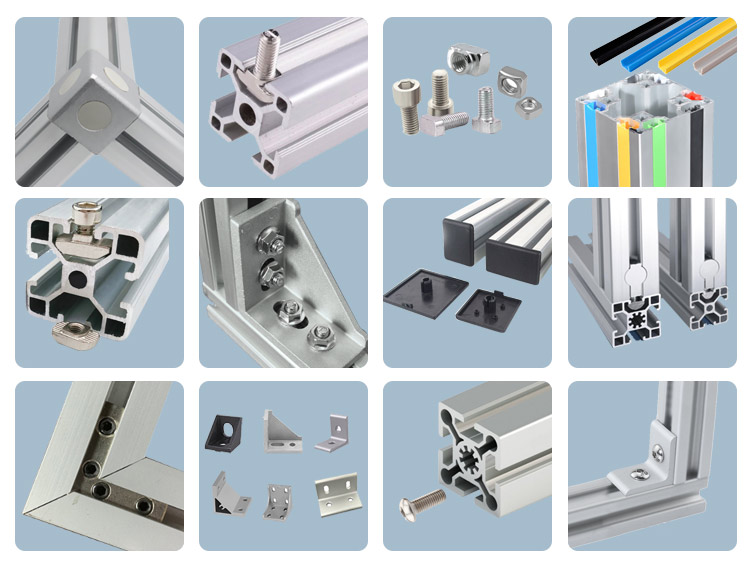

Easy Connection & Installation
Alugreat 6060 aluminum extrusion features simplified connection compatibility with other extrusion profiles, enabling easy assembly using M6 screws for secure and reliable installations. We offer custom cutting services to tailor the 6060 aluminum extrusion to your exact project length requirements, ensuring a perfect fit for your applications. The installation process is hassle-free and straightforward, allowing you to complete your projects efficiently.
No Welding Required
Unlike traditional metal framing solutions, Alugreat 6060 aluminum extrusion requires no welding for assembly, saving your company significant time and labor costs during the installation process.

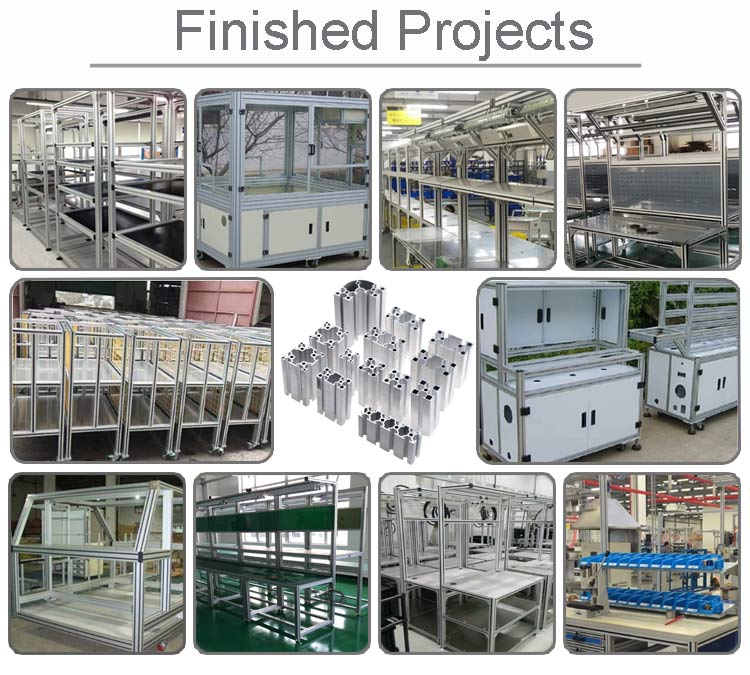

Application Scenarios
Alugreat 6060 aluminum extrusion is the ideal choice for medium-duty structural applications. Its optimized design shape provides superior structural strength, making it suitable for a variety of industrial and structural framing projects.
Surface Treatment Options
We offer a range of surface finish options for our 6060 aluminum extrusion, including anodized finish which enhances scratch resistance, protecting your aluminum extrusion from wear and tear and extending its service life. You can choose the surface finish that best matches your aesthetic and functional requirements.
Custom Design & Quality Assurance
Customization Services
Alugreat provides comprehensive customization services for 6060 aluminum extrusion. You can submit your desired specifications, and our excellent manufacturing team will ensure all your requirements are met. Our team of experienced technicians and engineers with 5+ years of industry experience can also provide professional design improvements and expert advice to optimize your 6060 aluminum extrusion design.
Sample & Quality Control
We also offer sample 6060 aluminum extrusion for your approval, allowing you to verify the quality and specifications before placing a full order. Every order of Alugreat 6060 aluminum extrusion undergoes regular quality checks throughout the manufacturing process until shipment, ensuring consistent quality and reliability for your projects.
