One-stop Design & Manufacturing Solutions
Advanced Manufacturing Capabilities
Standard Existing Size save your initial cost
Fast Shipment of Standard Aluminum Tubing Size
2040 Aluminum Extrusion Supplier
2040 Aluminum Extrusion
Alugreat 2040 aluminum extrusion has a long list of uses. First on the list, it can be used for decorations. Secondly, it is utilized in workstations and buildings too. Also, it is used in 3d printers.
- Provide free design with all matching accessories
- Free sample for testing and global shipping
- Accepts Low MOQ from 100kg
- One stop purchasing and supply all relative tslot accessories
| Item Type | 2040 aluminum extrusion | |
| Material | 6000Series aluminium alloy | |
| Temper | T3-T8 | |
| Shape | T – Profile, or customized | |
| The option of Profile | 15/20/30/40/45/50/60/80/90/100/160 series etc. | |
| Application | Decorations, Robot Frame, workstations, Building, Industrial, Machinery, Automation parts, CNC, etc | |
| Color | Standard: black, silver and grey, or customized | |
| Finish | Anodizing, Mill finish, Electroplating, Polishing, Sand blasted, Powder coating, Silver plating, Brushed, Painted, PVDF etc. | |
| Length | customized length | |
| Delivery time | 15-20 days after sample confirmed & down payment, or negotiated | |
| Deep process | CNC,drilling,milling,cutting,stamping,welding,bending,assembling,Custom Aluminum Fabrication | |
| size | 6mm,8mm,10mm | |
| MOQ | Low MOQ | |
| OEM & ODM | Available. our engineer can check and discuss your design , great help ! | |
| Free Samples | Yes,we can provide free sample | |
| Delivery time | 15-20 days after sample confirmed & down payment, or negotiated | |
| Port | Shanghai Port |
Yes, Alugreat is able to provide 2040 aluminum extrusion for you to check the quality, Normally the sample is for free for saving your cost, But it will require tooling cost if custom tube size.
It is only taking 7-10 days to complete your sample if the sample size is in stock. For custom 2040 aluminum extrusion, It takes a little bit long time to make extrusion tooling, commonly it requires 30-35 days finish.
30% TT in advance, the balance payment is paid before shipment.
We have the personal paging service for helping customers’ solve queries Also, We have a free of six months warranty. If our products occur quality problems, we will change the products.
We inspect the product after each manufacturing process and we have the advanced test facilities and instruments.
Paper tube and exporting wooden case, or customized requirement.
Frequently Asked Questions About 2040 aluminum extrusion
Alugreat is a leading 2040 aluminum extrusion manufacturer and supplier in China, offering high-quality 20 series aluminum extrusions with a standard 20mm x 40mm dimension, along with customizable dimension options. You can explore our product catalog to view the full range of 2040 aluminum extrusion dimensions available.
Key Features of Alugreat 2040 Aluminum Extrusion
Lightweight & Premium Material
Alugreat 2040 aluminum extrusion is lightweight and constructed using 6000 series aluminum alloy, delivering a perfect balance of weight efficiency and structural reliability for your industrial and commercial applications.
Versatile T-Slot (V-Slot) Design
Our 2040 aluminum extrusion features a T-slot profile, also known as V-slot aluminum extrusion, thanks to its T-shaped structure. This design enables easy assembly and integration with other components, making it a flexible solution for various project needs.
Applications of Alugreat 2040 Aluminum Extrusion
Alugreat 2040 aluminum extrusion is widely used in the construction of robot frames, and is also a preferred choice for a variety of other industrial machinery. Its primary function is to connect bars and components, and its excellent wear resistance makes it a reliable option to meet your business's operational demands.

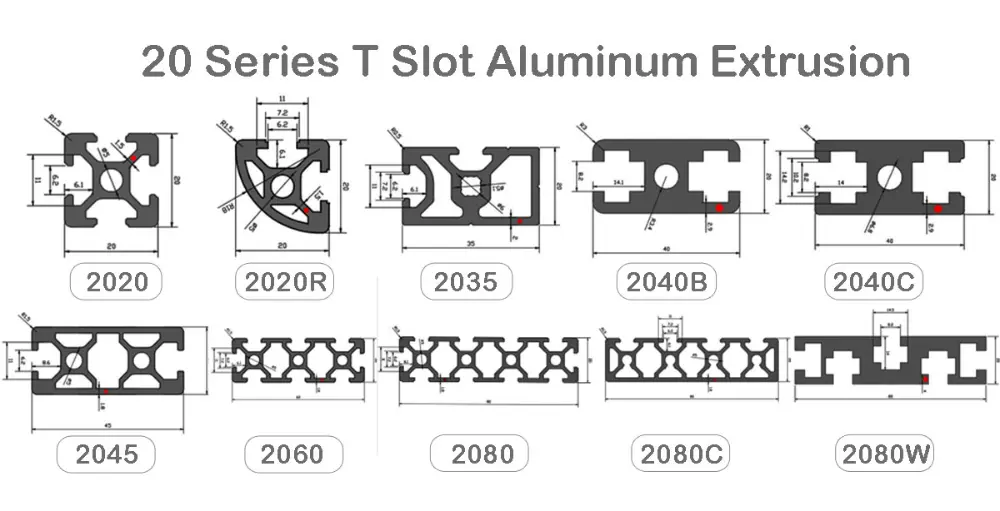

20 Series Aluminum Extrusion Specifications

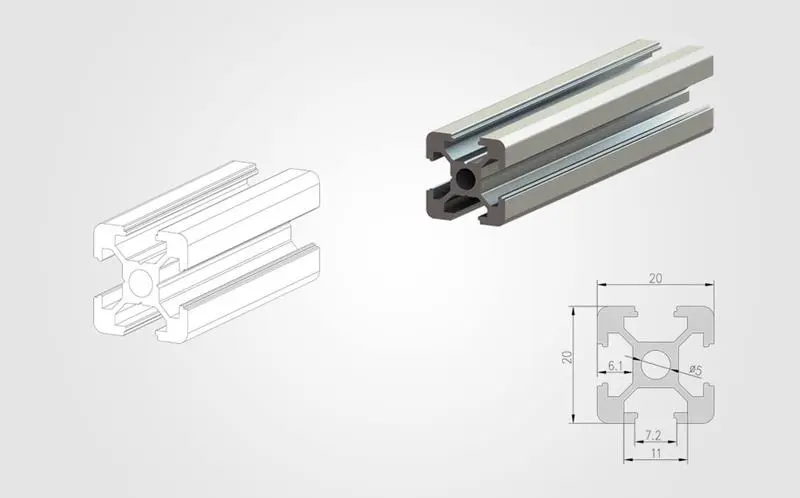

2020 Aluminum Extrusion
Specifications
Product Code: W-6-2020
Slot Width: 6.2mm
Weight: 0.65kg/m
Standard Length: 6.02m (custom cut options available)
Moment of Inertia: Ix: 0.72cm⁴, Iy: 0.72cm⁴
Section Modulus: Zx: 0.72cm³, Zy: 0.72cm³

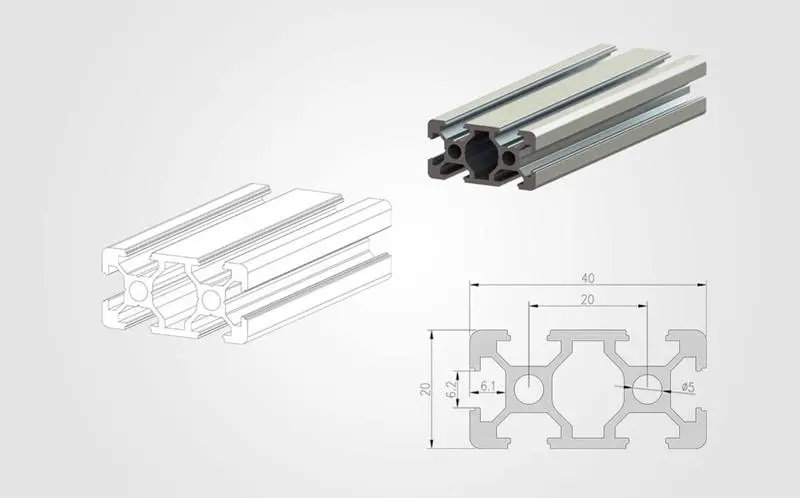

2040 Aluminum Extrusion
Specifications
Product Code: W-6-2040
Slot Width: 6.2mm
Weight: 1.1kg/m
Standard Length: 6.01m (custom cut options available)
Moment of Inertia: Ix: 0.72cm⁴, Iy: 0.72cm⁴
Section Modulus: Zx: 0.72cm³, Zy: 0.72cm³
2080 Aluminum Extrusion
Specifications
Product Code: W-6-2080
Slot Width: 6.2mm
Weight: 1.98kg/m
Standard Length: 6.01m (custom cut options available)
Moment of Inertia: Ix: 0.72cm⁴, Iy: 0.72cm⁴
Section Modulus: Zx: 0.72cm³, Zy: 0.72cm³
Surface Treatment Options
We offer a diverse range of surface treatment options for our aluminum extrusions. The most popular choice among our customers is anodized finish, and we also provide other options including mill finish, silver plating, sandblast, and powder coating to match your aesthetic and functional requirements.
Customization Services
Alugreat provides full customization for 2040 aluminum extrusions to meet your unique design needs. Our standard stock length is 6m, and we also offer custom lengths such as 1500mm, 1000mm, and 2000mm to fit your specific project requirements.
Fast & Reliable Delivery
Alugreat is committed to on-time delivery of your aluminum extrusion orders. We are known for our fast and efficient delivery services, and we will ship your products as soon as all details are confirmed to ensure your project stays on schedule.
