3030 Aluminum Extrusion
3030 Aluminum Extrusion
It is widely popular because of its all-around functions. Alugreat 3030 aluminum extrusion helps in creating frameworks of buildings. Also, it is used in making light structures and enclosures.
- Quick and easy to use finished products
- No additional maintenance needed
- Stress-free assembly of the aluminum products
- 0% complaint from our valued customers
Your Reliable 3030 Aluminum Extrusion Supplier and Manufacturer
| Item Type | 3030 aluminum extrusion | |
| Material | 6000Series aluminium alloy | |
| Temper | T3-T8 | |
| Shape | T – Profile, or customized | |
| The option of Profile | 15/20/30/40/45/50/60/80/90/100/160 series etc. | |
| Application | Decorations, Robot Frame, workstations, Building, Industrial, Machinery, Automation parts, CNC, etc | |
| Color | Standard: black, silver and grey, or customized | |
| Finish | Anodizing, Mill finish, Electroplating, Polishing, Sandblasted, Powder coating, Silver plating, Brushed, Painted, PVDF, etc. | |
| Length | customized length | |
| Delivery time | 15-20 days after sample confirmed & down payment, or negotiated | |
| Deep process | CNC,drilling,milling,cutting,stamping,welding,bending,assembling,Custom Aluminum Fabrication | |
| size | 6mm,8mm,10mm | |
| MOQ | Low MOQ | |
| OEM & ODM | Available. our engineer can check and discuss your design, great help ! | |
| Free Samples | Yes, we can provide free sample | |
| Delivery time | 15-20 days after sample confirmed & down payment, or negotiated | |
| Port | Shanghai Port |
Yes, Alugreat is able to provide 3030 aluminum extrusion for you to check the quality, Normally the sample is for free for saving your cost, But it will require tooling cost if custom tube size.
It is only taking 7-10 days to complete your sample if the sample size is in stock. For custom 3030 aluminum extrusion, It takes a little bit long time to make extrusion tooling, commonly it requires 30-35 days finish.
30% TT in advance, the balance payment is paid before shipment.
We have the personal paging service for helping customers’ solve queries Also, We have a free of six months warranty. If our products occur quality problems, we will change the products.
We inspect the product after each manufacturing process and we have the advanced test facilities and instruments.
Paper tube and exporting wooden case, or customized requirement.
Frequently 3030 Aluminum Extrusion Questions & Answers
Alugreat is a leading 3030 aluminum extrusion manufacturer and supplier, specializing in high-quality 30 series T-slot aluminum profiles. Our 3030 aluminum extrusion is highly flexible, making it one of our best-selling aluminum profiles in the market, thanks to its versatile design and easy-to-use features.
Key Features of Alugreat 3030 Aluminum Extrusion
Unique T-Slot Design
Alugreat 3030 aluminum extrusion features a special T-slot design that provides exceptional flexibility, allowing it to be easily integrated into a wide range of projects and applications.
Hassle-Free Installation & Use
Unlike other extruded aluminum products, our 3030 aluminum extrusion does not require additional processes such as welding, cutting, grinding, or painting, making it quick and easy to use for your projects.
Size & Naming Origin
The 3030 aluminum extrusion gets its name from its precise 30mm x 30mm dimensions, which offers a balanced size that is suitable for various small to medium-scale application scenarios.

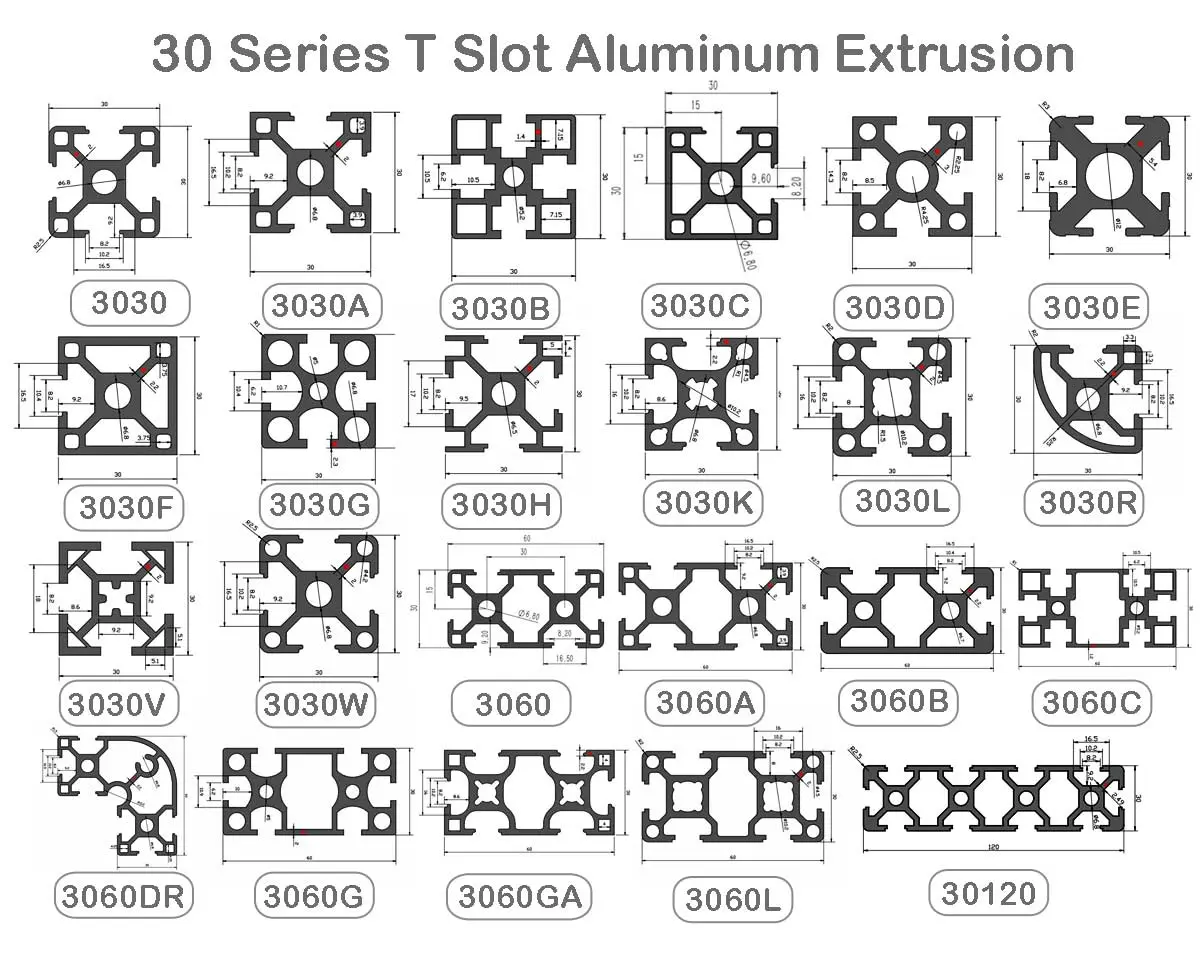

30 Series Aluminum Extrusion Specifications

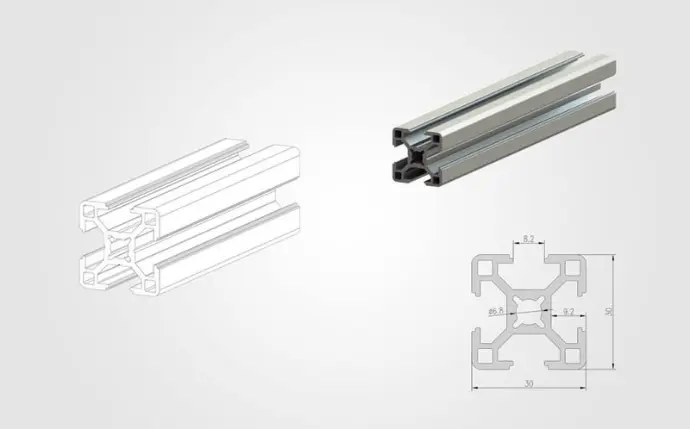

3030 Aluminum Extrusion
Specifications
Product Code: W-8-3030
Slot Width: 8.2mm
Weight: 1.05kg/m
Standard Length: 6.02m (custom cut options available)
Moment of Inertia: Ix: 2.85cm⁴, Iy: 2.85cm⁴
Section Modulus: Zx: 1.8cm³, Zy: 1.8cm³

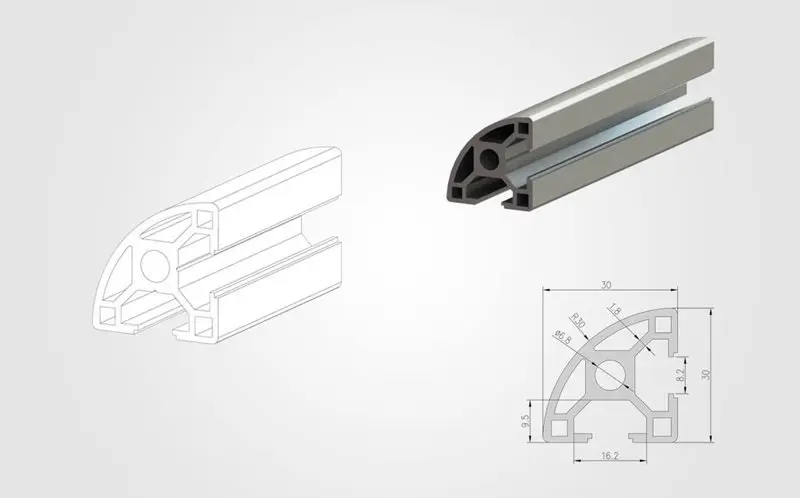

3030R Aluminum Extrusion
Specifications
Product Code: W-8-3030R
Slot Width: 8.2mm
Weight: 1.2kg/m
Standard Length: 6.02m (custom cut options available)
Moment of Inertia: Ix: 2.52cm⁴, Iy: 2.52cm⁴
Section Modulus: Zx: 1.51cm³, Zy: 1.51cm³

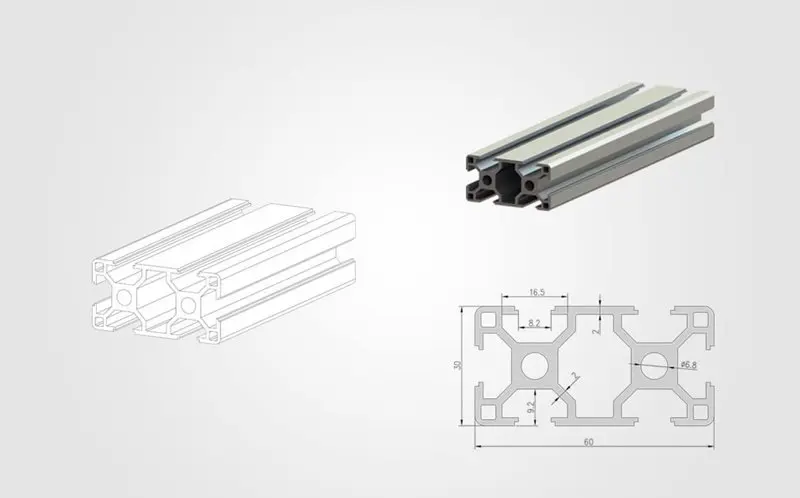

3060 Aluminum Extrusion
Specifications
Product Code: W-8-3060
Slot Width: 8.2mm
Weight: 1.85kg/m
Standard Length: 6.02m (custom cut options available)
Moment of Inertia: Ix: 19.8cm⁴, Iy: 5.15cm⁴
Section Modulus: Zx: 6.60cm³, Zy: 3.30cm³

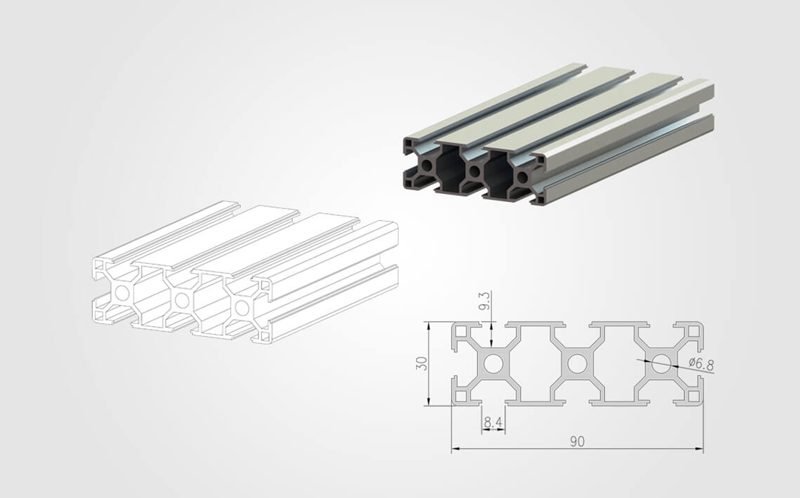

3090 Aluminum Extrusion
Specifications
Product Code: W-8-3090
Slot Width: 8.4mm
Weight: 2.85kg/m
Standard Length: 6.02m (custom cut options available)
Moment of Inertia: Ix: 19.8cm⁴, Iy: 5.15cm⁴
Section Modulus: Zx: 6.60cm³, Zy: 3.30cm³

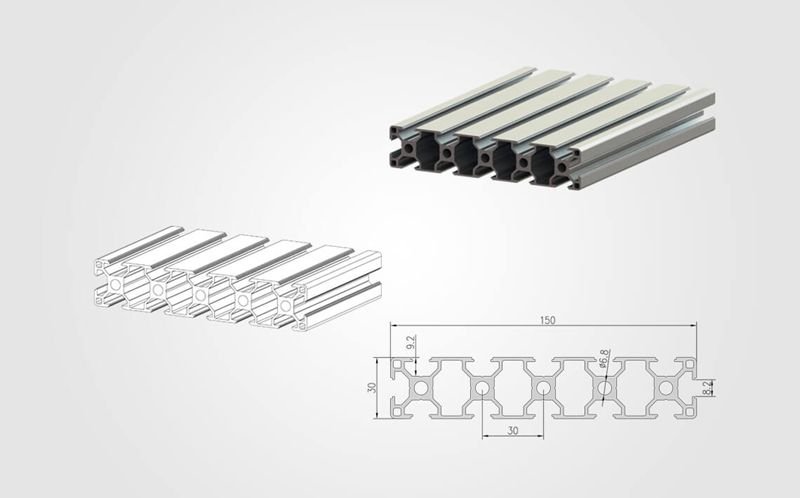

30150 Aluminum Extrusion
Specifications
Product Code: W-8-30150
Slot Width: 8.2mm
Weight: 4.5kg/m
Standard Length: 6.02m (custom cut options available)
Moment of Inertia: Ix: 19.8cm⁴, Iy: 5.15cm⁴
Section Modulus: Zx: 6.60cm³, Zy: 3.30cm³
Additional Details: The 30150 series has a wall thickness of 2.4mm and an alternative weight option of 3.2kg/m.
Surface Treatment Options
Alugreat offers a variety of surface treatment options for our 3030 aluminum extrusion, including brushed finish, painted finish, anodized finish, and mill finish. We also support custom-made surface treatments to meet your specific project requirements and aesthetic preferences.
Temper & Customization Services
Temper Options
Our 3030 aluminum extrusion is available in standard temper options, with T5 temper readily available in our inventory. We also accept requests for other custom temper options to match your project's performance needs.
Custom Length & Design
Alugreat provides a wide range of length options for our 3030 aluminum extrusion, and we fully support custom-made sizes. You can negotiate your specific requirements with our team, and we will respond to your requests immediately. Additionally, we offer free custom design services for 3030 aluminum extrusion with no extra charges, ensuring complete transparency with no hidden fees for our customers.
Delivery & Maintenance Advantages
Fast & Stress-Free Delivery
After confirming your order details, your 3030 aluminum extrusion products will be delivered to your company within 15 to 20 days. Alugreat ensures a smooth and stress-free delivery process to meet your project timelines.
Low-Maintenance Performance
Alugreat 3030 aluminum extrusion delivers excellent performance with minimal to no maintenance required, allowing you to focus on your project without worrying about ongoing upkeep of the aluminum profiles.
